Fiuggi

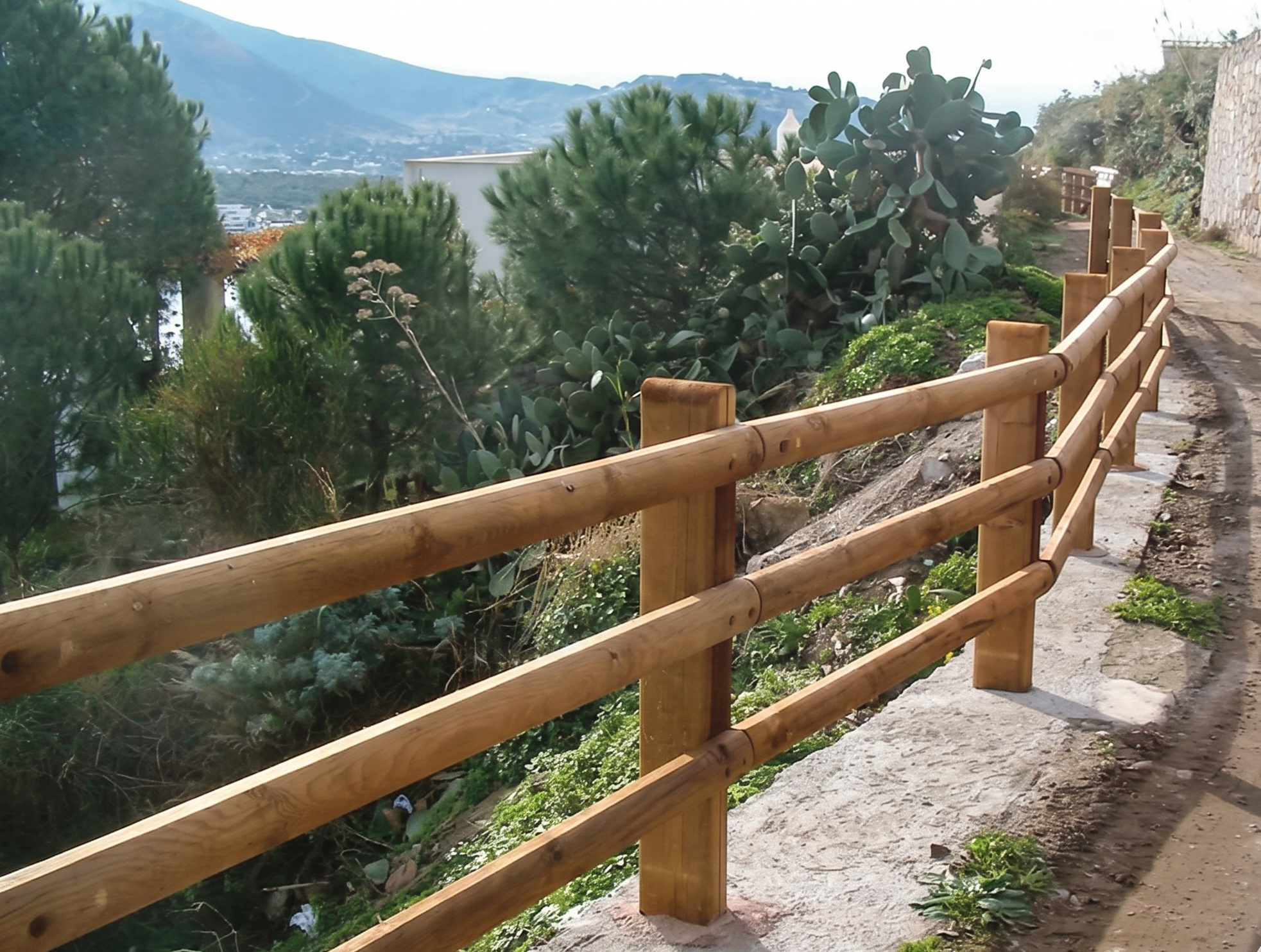

Protection barrier for cycle paths

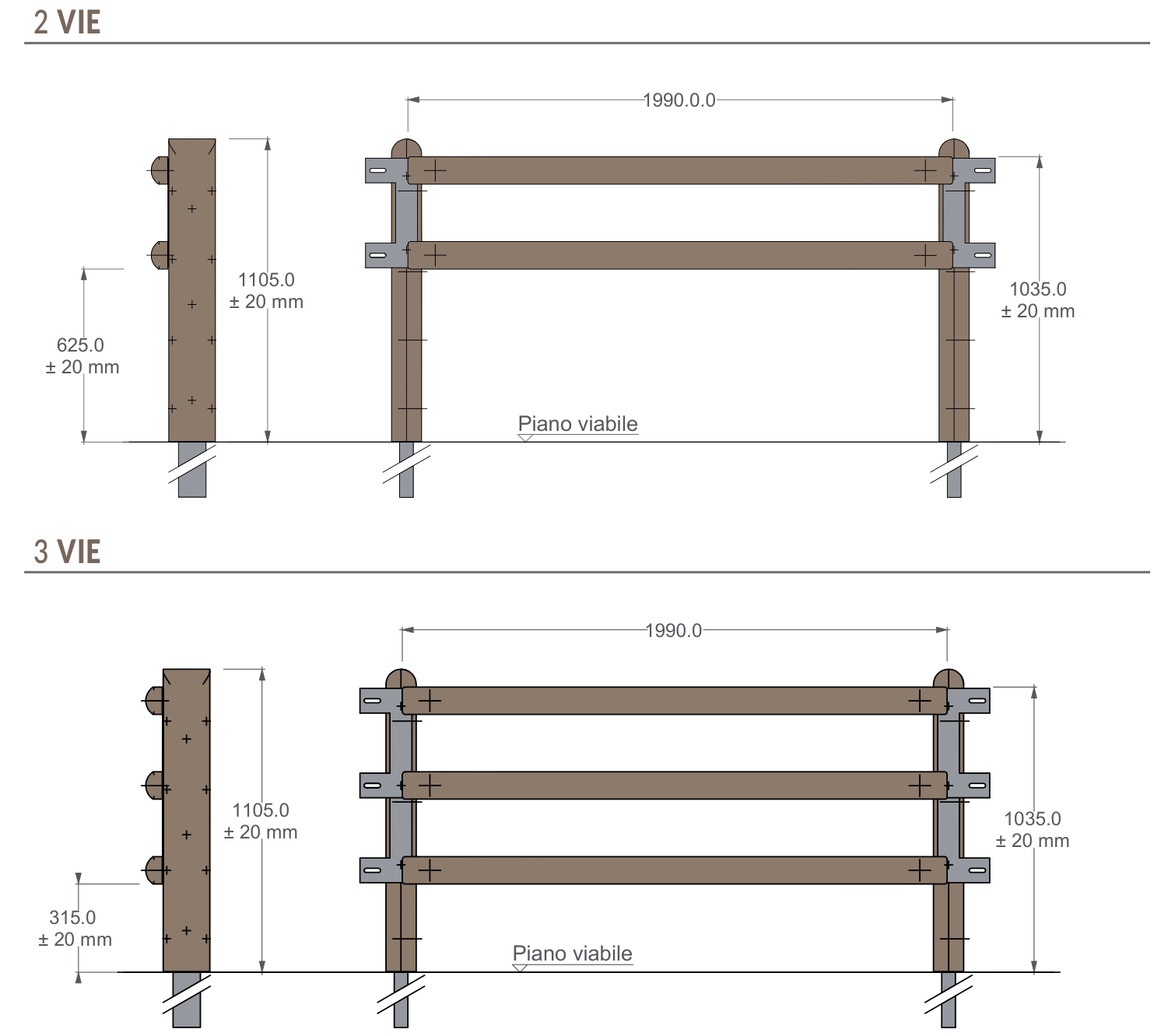

Vertical posts in “CORTEN®” S355J0WP steel, “U” section 100×50 mm, 5 mm thick and 2070 mm long; driven into the ground to a depth of 1035 mm and spaced 2000 or 2600 mm apart. The above-ground part of the posts is clad with a post cover made of two suitably shaped, autoclave-treated wooden elements joined with suitable screws. A specially shaped plate (two- or three-way) in “CORTEN®” S355J0WP steel, 2.5 mm thick, is fixed to each post. The device is completed with horizontal rails made of a series of half-poles in wood Ø120 and 1990 or 2590 mm long, suitably shaped and autoclave-treated, fixed to the plates with round-head bolts Cl. 4.8 M10x70; nuts and washers.
